timer.h File Reference

(/usr/bin/git)

#include <bits/types/struct_itimerspec.h>
#include <stdbool.h>
#include <stdint.h>
#include <time.h>

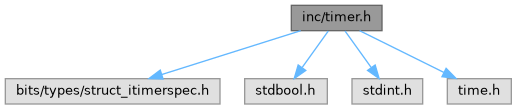

Include dependency graph for timer.h:

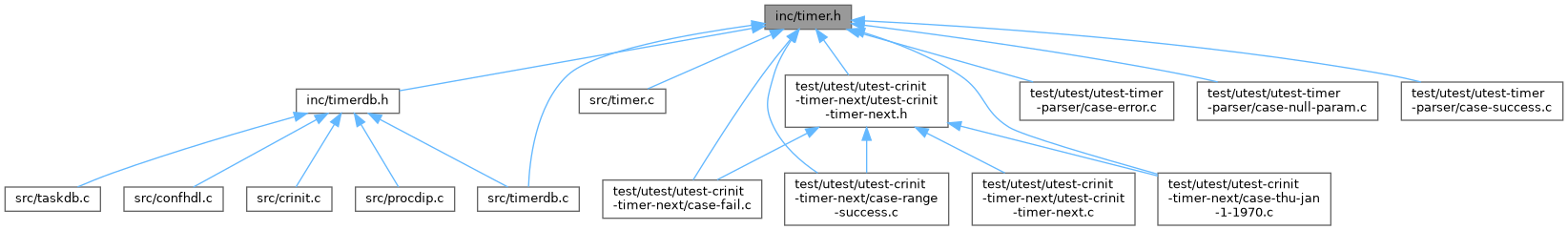

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	crinitTimerDef
struct	crinitTimer

Macros
#define	CO_RANGE(start, test, end)   (((start) <= (test)) && ((test) < (end)))
#define	CC_RANGE(start, test, end)   (((start) <= (test)) && ((test) <= (end)))
#define	OC_RANGE(start, test, end)   (((start) < (test)) && ((test) <= (end)))
#define	OO_RANGE(start, test, end)   (((start) < (test)) && ((test) < (end)))

Typedefs
typedef struct crinitTimerDef	crinitTimerDef_t
typedef struct crinitTimer	crinitTimer_t

Functions
void	crinitTimerSetDefault (crinitTimerDef_t *td)
bool	crinitCheckTimerDef (crinitTimerDef_t *td)
int	crinitSPrintTimerDef (char *s, crinitTimerDef_t *td)
void	crinitPrintTimerDef (crinitTimerDef_t *td)
bool	crinitTimerParse (char *s, crinitTimerDef_t *td)
struct timespec	crinitTimerNextTime (struct timespec *last, crinitTimerDef_t *td)
struct tm *	crinitZonedTimeR (const time_t *time, int8_t timezone[2], struct tm *restrict result)
bool	crinitCheckTimerTime (struct timespec ts, crinitTimerDef_t *td)

Macro Definition Documentation

CC_RANGE

#define CC_RANGE	(		start,
			test,
			end
	)		(((start) <= (test)) && ((test) <= (end)))

Check if a value is in a closed-closed range (test in [start, end] ) ie start <= test <= end.

Parameters

start	the lower end of the range to check
test	the value to check if it's in range
end	the upper end of the range to check

Returns

true if test is higher or equal to start and lower or equal to end

CO_RANGE

#define CO_RANGE	(		start,
			test,
			end
	)		(((start) <= (test)) && ((test) < (end)))

Check if a value is in a closed-open range (test in [start, end) ) ie start <= test < end.

Parameters

start	the lower end of the range to check
test	the value to check if it's in range
end	the upper end of the range to check

Returns

true if test is higher or equal to start and lower then end

OC_RANGE

#define OC_RANGE	(		start,
			test,
			end
	)		(((start) < (test)) && ((test) <= (end)))

Check if a value is in a open-closed range (test in (start, end] ) ie start < test <= end.

Parameters

start	the lower end of the range to check
test	the value to check if it's in range
end	the upper end of the range to check

Returns

true if test is higher then start and lower or equal to end

OO_RANGE

#define OO_RANGE	(		start,
			test,
			end
	)		(((start) < (test)) && ((test) < (end)))

Check if a value is in a open-open range (test in (start, end) ) ie start < test < end.

Parameters

start	the lower end of the range to check
test	the value to check if it's in range
end	the upper end of the range to check

Returns

true if test is higher then start and lower then end

Typedef Documentation

crinitTimer_t

typedef struct crinitTimer crinitTimer_t

The type of a crinit timer object.

crinitTimerDef_t

typedef struct crinitTimerDef crinitTimerDef_t

The type of a timer definition.

Function Documentation

crinitCheckTimerDef()

bool crinitCheckTimerDef

(

crinitTimerDef_t *

td

)

Check if a timer definition gives a valid timer ie. month between 1 and 12, day in 1 to 31, hours 0 to 23, ...

Parameters

td	the timer definition to set check

Returns

true if the timer definition is valid, and false if not

crinitCheckTimerTime()

bool crinitCheckTimerTime	(	struct timespec	ts,
		crinitTimerDef_t *	td
	)

Check if a timerstamp is valid for a timer

Parameters

ts	the timestamp to check.
td	the crinit timer definition to check against

Returns

true if the timer should trigger at that timestamp, false otherwise

crinitPrintTimerDef()

void crinitPrintTimerDef

(

crinitTimerDef_t *

td

)

print a crinitTimerDef_t as crinitInfoPrint message

Parameters

td	the crinitTimerDef_t to print

crinitSPrintTimerDef()

int crinitSPrintTimerDef	(	char *	s,
		crinitTimerDef_t *	td
	)

print a crinitTimerDef_t into a string

Parameters

s	the string to print to
td	the crinitTimerDef_t to print

Returns

the number of bytes written to s excluding the terminating 0 byte

crinitTimerNextTime()

struct timespec crinitTimerNextTime	(	struct timespec *	last,
		crinitTimerDef_t *	td
	)

Calculate the next time the timer should trigger.

Parameters

last	the last timestamp to calculate the next from
td	the timer definition to calculate the next time from

Returns

the timestamp the timer is fullfiled next

crinitTimerParse()

bool crinitTimerParse	(	char *	s,
		crinitTimerDef_t *	td
	)

Parses a timer definition from a string

Parameters

s	the string to parse from
td	the crinitTimerDef_t to set

Returns

true on success, false otherwise

crinitTimerSetDefault()

void crinitTimerSetDefault

(

crinitTimerDef_t *

td

)

Set a timer to the default value: Mon..Sun-0000..65535-01..12-01..31-00:00:00+0000

Parameters

td	the crinitTimerDef_t to set to default

crinitZonedTimeR()

struct tm * crinitZonedTimeR	(	const time_t *	time,
		int8_t	timezone[2],
		struct tm *restrict	result
	)

Get a struct tm similar to gmtime_r with a specific timezone.

Parameters

time	the timestamp to transform into a tm
timezone	the timezone with hour and minute
result	the resulting tm struct

Returns

a tm representation in the specyfied timezone
